BLANK RELOADING DISK compatible with LEE AUTO-DISK POWDER MEASURE

$17.50 $15.50

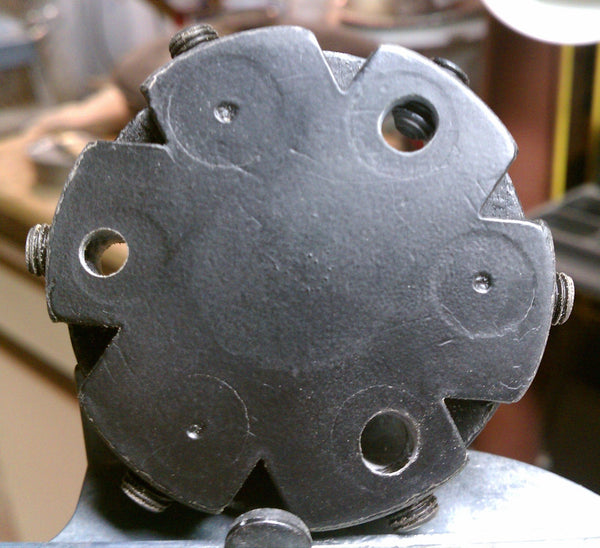

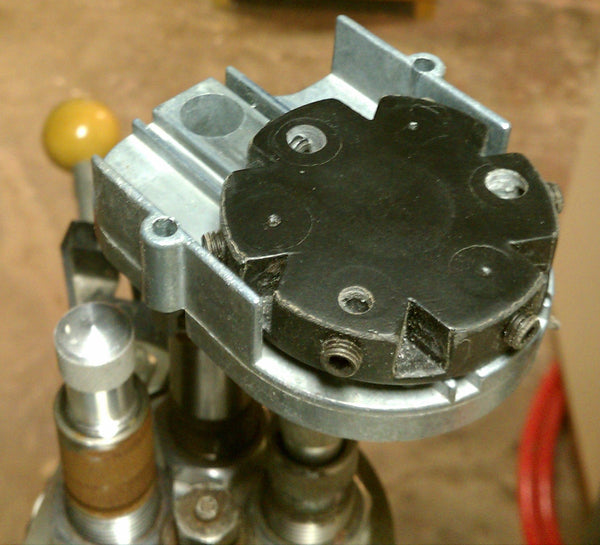

The Images on the left show our adjustable blank disks with center drill indicator marks which help ensure your custom drill/sized holes line up when used in conjunction with your Lee Auto-Disk Powder Measure!

Note: Our adjustable disks are not face drilled, only the 6-tapped holes on the side are finished. Holes in face show are only for explanation purpose.

(As you can see, holes have been drilled off center purposely to show importance of indicator marks while the top hole shows the adjustment screw deeply inserted).

Our Custom Cast adjustable blank powder charge disk will greatly simplify the process of repeatedly dropping your custom charges within the limits of your Lee Auto Disk Powder Measure.

After drilling for your custom charge, the hole volume can be easily tweaked by rotating the inserted adjustment screw!

The easy to use Detailed 3-page chart that comes with our disk, shows the drill bit size required for a given hole in cubic centimeters.

To find the proper size drill bit

Multiply your required powder charge grains by the powder VMD you are using.

Locate the number you get in the charts right hand column.

Drill the hole with the corresponding Bit Size in that row.

EXAMPLE

8.5 grains Accurate #5 @ .0623 VMD = .52955

19/64 drill = .510440 = 8.19 grains

5/16 drill = .565590 =9.078 grains

(found on page 2)

Bit Size

Bit Diameter in Centimeters

Cubic Centimeters of Bit Hole

19/64	.75406	.510440
7.6mm	.76	.5187166
7.62mm	.762	.52145
7.7mm	.77	.532456
7.8mm	.78	.546376
7.874mm	.7874	.556793
7.9mm	.79	.560476
5/16	.79375	.565590

Drill smaller hole and slowly enlarge with rolled fine grit sand paper.

Verify and continue sanding until proper drop is achieved.

Our adjustable blank disk comes complete with 6- inserted adjustment screws, 2- spare adjustment screws, 1- screw adjusting key, and our Detailed 3-page drill chart with over 100 bits listed from 5/32 thru 7/16.

Larger charges may require using the Lee Double Disk System in conjunction with 1-Lee disk and our adjustable blank disk.

Please note: Our Blank Disks are 3D Printed not done on a Million Dollar Injection Mold, cosmetic flaws should be expected!
